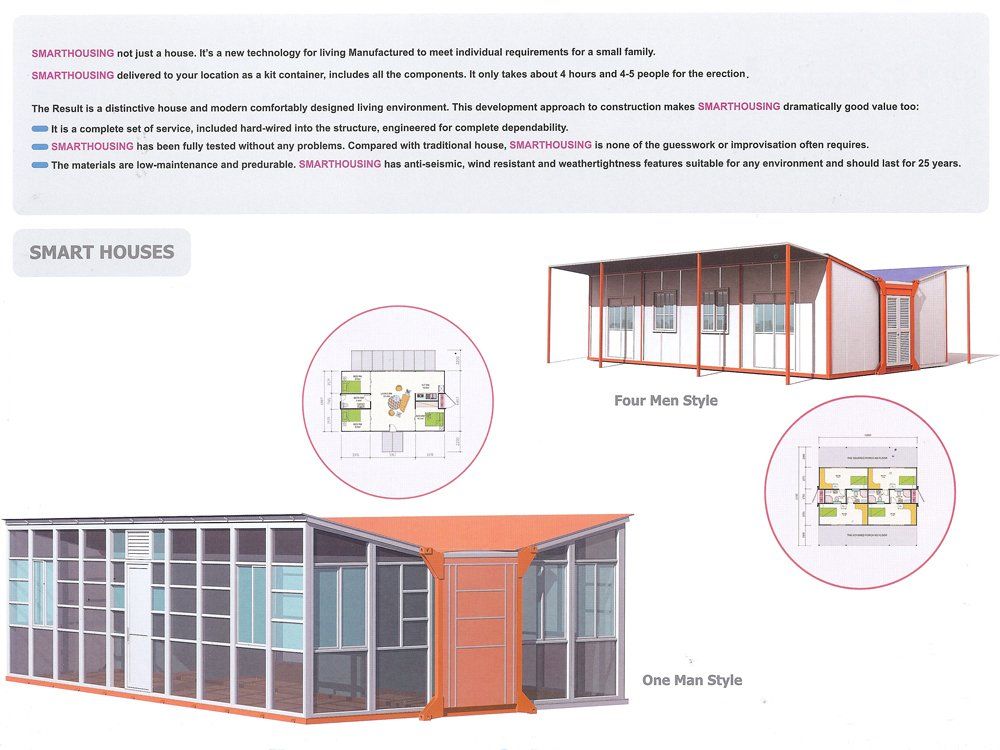

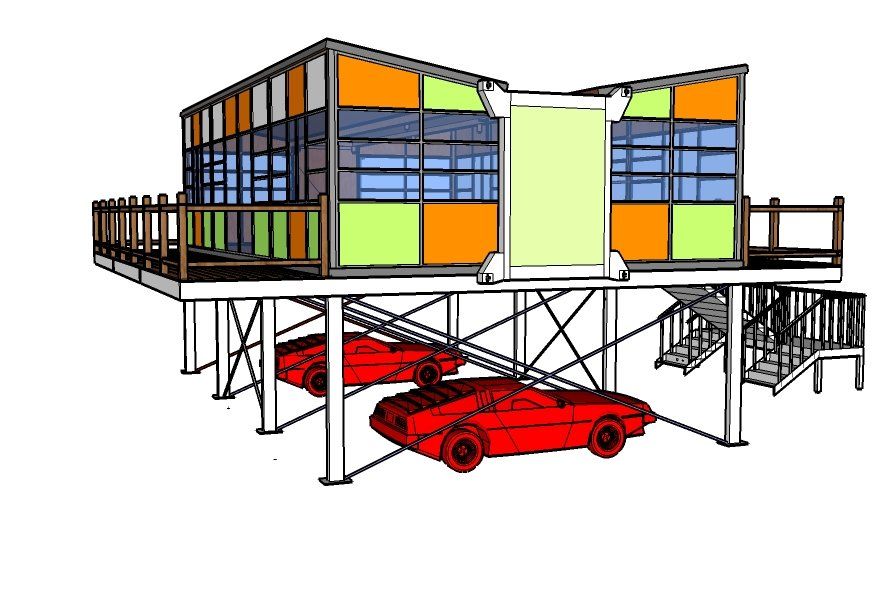

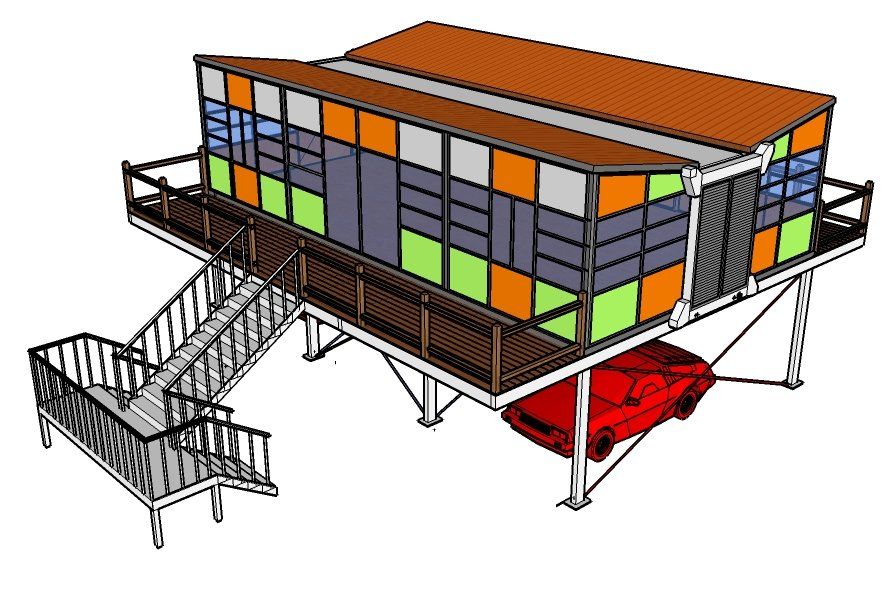

Smart House not just a house, it’s a new technology for living manufactured to meet
individual requirement for a small family.

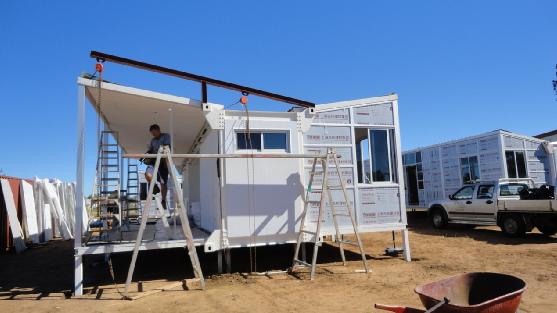

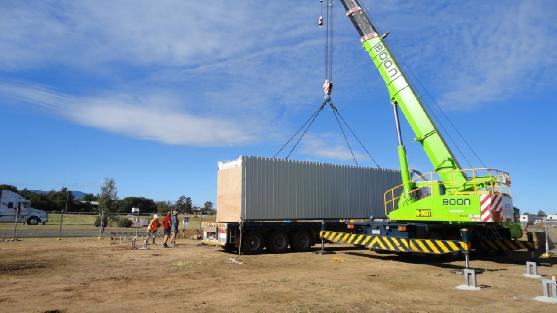

Smart House delivered to your location as a kit container, includes all the components. It
only takes about 8 hours and 4-5 people for the erection, all the instructions will provided
by Container Homes.

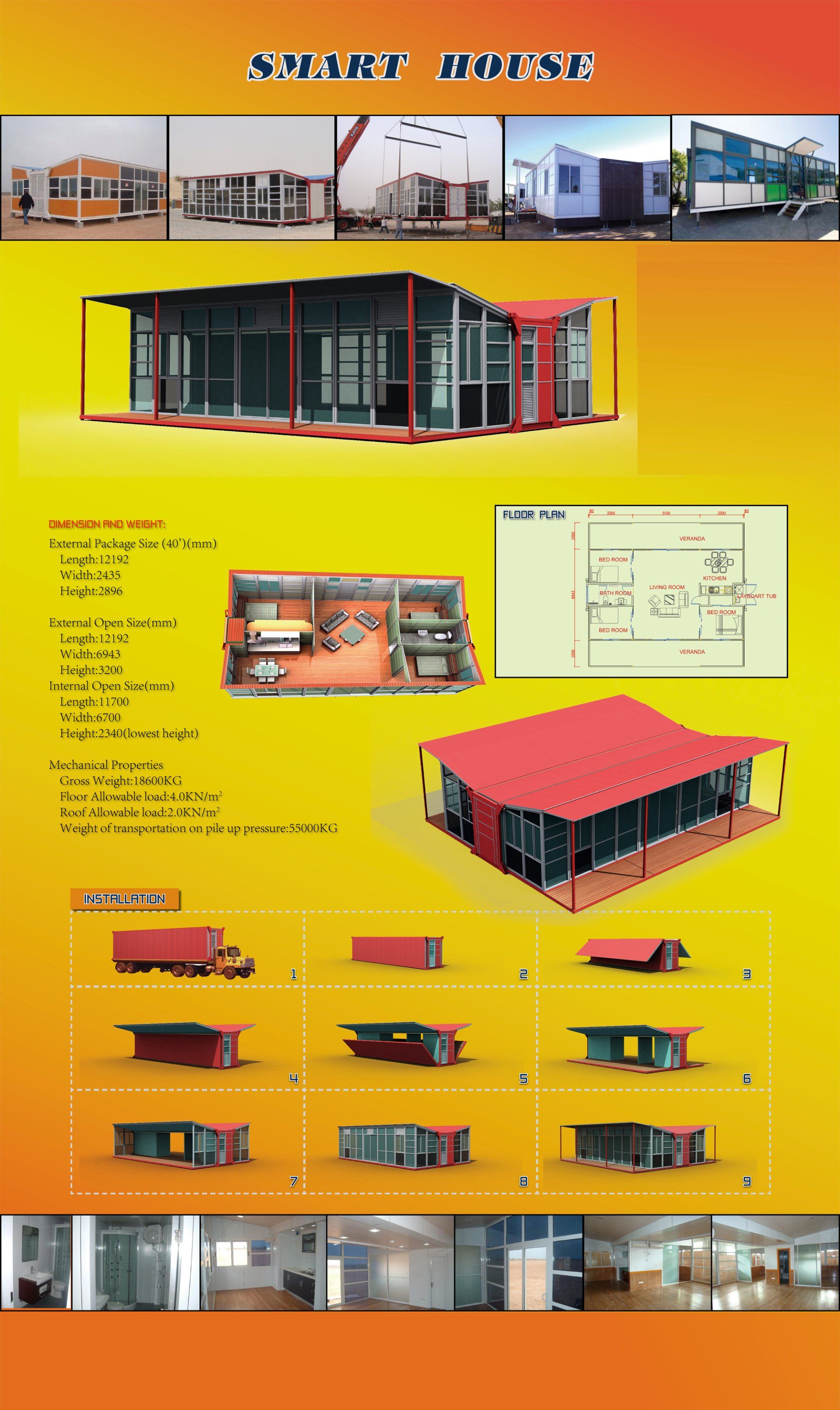

External Package Size (40’)
Length: 12192mm
Width: 2435mm
Height: 2896mm
External Open Size
Length: 12192mm
Width: 6943mm
Height: 2896mm
Internal Open Size
Length: 11800mm
Width: 6700mm
Height: 2400~3000mm
Mechanical Properties
Gross Weight: 18T
Floor Allowable Load: 3.5KN/m2
Roof Allowable Load: 2.0N/m2
Material
Main frame used hot-rolled steel profile
Cold formed steel profiles in a thickness of 1.5mm~3.2mm
Galvanized light gauge steel in a thickness of 1.0mm~1.6mm
Surface Treatment and Paint Material & Standards:
Sand blast to clean rusts and create a protection velamen on the face;
Sprays 10um antirust lacquer;
Finally, sprays 60um protect velamen.
Note: color can be changed accord to the customer’s requirements.
Fittings: 8 reinforced corner fittings (dimensions according to ISO standard 1161)
Others: The structure is composed with main part and folding part, when packed folding
the panel to form a standard container, when unpacked folding out the panel and then
install the posts and the wall to fix the up panel and bottom chasis.
2. Bottom chasis
Composed (outer to inner)
Bottom panel: 0.5mm thick galvanized steel sheet
.Insulation: 100mm polystyrene insulation panel insert to the gap of the beam.
Vapor barrier: 80um thick polythene velamen.
Base panel: 18mm thick fiber-cement board
Floor: 15mm thick grooved and tongued carbon color bamboo floor panel.
Allowable load: 3.5KN/ m2
Heat transfer coefficient: K=0.45W/ m2.K
3. Top Covered
Composed (outer to inner)
Roof surface: 0.5mm thick white color corrugated steel roof sheet
Insulation layer :8mm bubble insulation
Base board: 18mm plywood board.
Insulation: 80mm Rockwool insert to the gap of beam.
Ceiling: 18mm PVC ceiling panel
Allowable load: 2.0 KN/ m2
Heat transfer coefficient: K=0.45 W/ m2.K
4. Wall System
a. Interior Wall
Composed (surface to surface)
Outer panel: 9mm plywood+3mm aluminum plastic sheet
Insulation: 100mm rock wool insulation insert in the frame
Outer panel: 9mm plywood+3mm aluminum plastic sheet
Allowable load: 1.5 KN/ m2
Heat transfer coefficient: K=0.45 W/ m2.K
b. Exterior Wall:
Frame: aluminum alloy frame
Sandwich panel(external to internal)
1. 3mm aluminum plastic sheet
2. 9mm fiber-cement board
3. 50mm XPS insulation board
4. 9mm fiber-cement board
5. 3mm aluminum plastic sheet
Windows/door: AS standard aluminum double glass window and door.
